SMT Stencilfor Reliable PCB Assembly
- SMT stencil from $3, 12h build time
- 304 HTA stainless steel, ±0.003mm laser precision
- Nano-coating, electropolishing, step stencil options
Same-Day Quote
Send your file before 3 PM and get a price within 4 working hours.
MOQ 1 Piece
One stencil or one thousand, every order is welcome.
Laser Precision
304 stainless steel, ±10μm accuracy, electropolished apertures.
Global Shipping
DHL/FedEx 2–4 days to Singapore, Malaysia, Thailand & Vietnam.
What is an SMT Stencil?
SMT stencil, also called PCB stencil or solder paste stencil, is a precision stainless-steel stencil used in PCB assembly. It features laser-cut apertures aligned with PCB pads to ensure accurate and consistent solder paste deposition, minimizing defects such as bridging or misalignment and enabling reliable, high-quality PCB assembly.
SMT Stencil Pro Overview
Our stencil service is built around precision laser-cut technology, supporting solder paste applications for high-quality PCB assembly. We specialize in customized stencils from your Gerber/CAD files — framed and frameless, nano-coating, electropolishing and step stencils — to improve solder paste release, increase first-pass SMT yield, and optimize printing performance for mixed-technology and high-density PCBs.
Your files are checked by our engineers for free, quotes come the same day, and production takes just 8–12 hours. MOQ is 1 piece, with 2–3 day express delivery to Southeast Asia.
Types of SMT Stencils
Surface mount stencils can be categorized by frame and by manufacturing process.

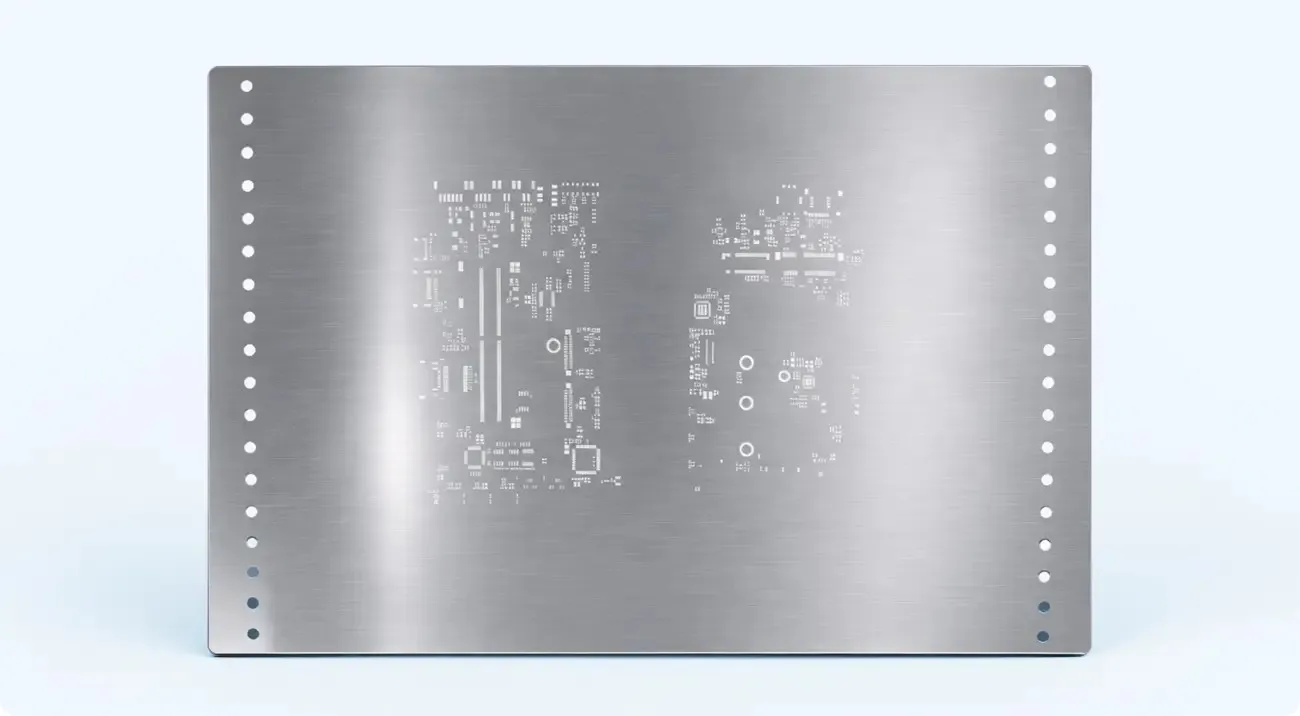

Frameless
Non-Framework Stencil
A standalone stainless-steel sheet without a frame. More flexible and space-saving, ideal for small batches and manual assembly.

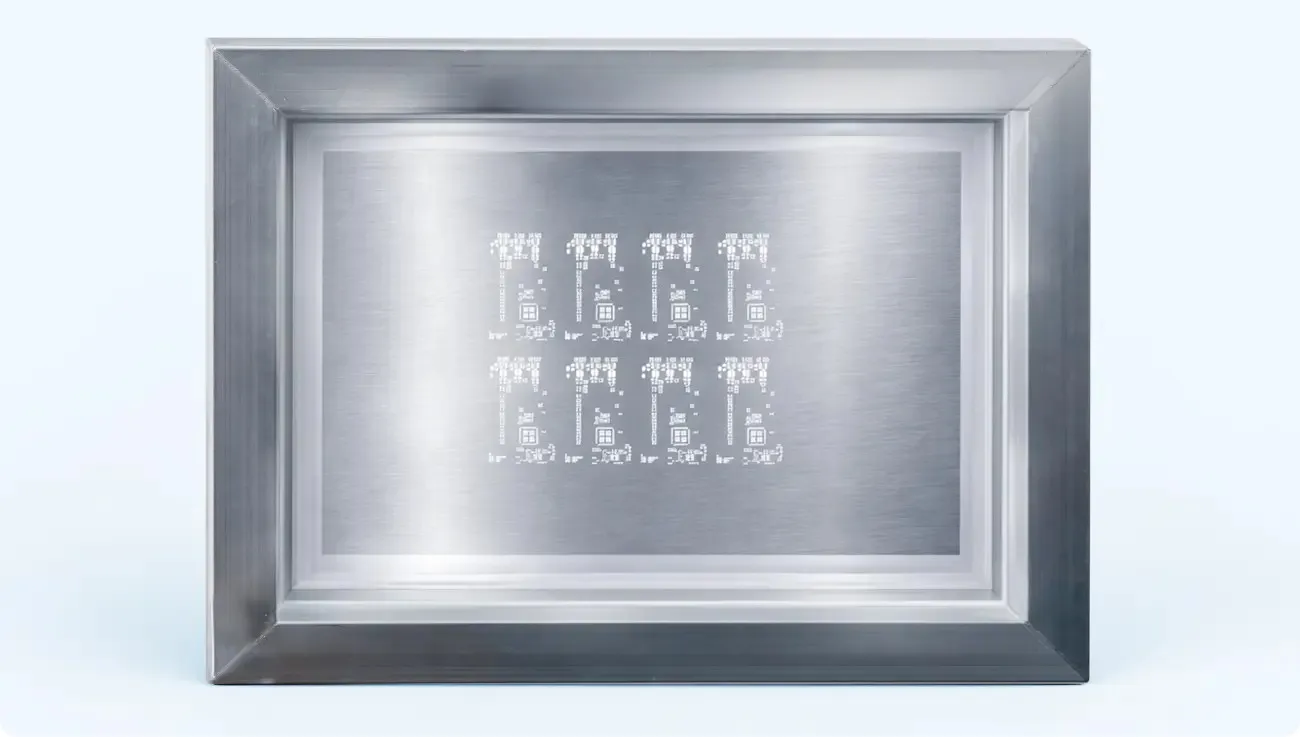

Framed
Framework Stencil
The stencil is fixed in an aluminum frame. Easy to handle and position accurately, suitable for automated pick-and-place machines.
Process
Nano-Coating
Faster solder paste release, more uniform deposits and less cleaning — ideal for BGA, QFN and other fine-pitch components.
Process
Electropolishing
Removes micro burrs and smooths aperture walls for better solder paste release — a perfect match with nano-coating.
Process

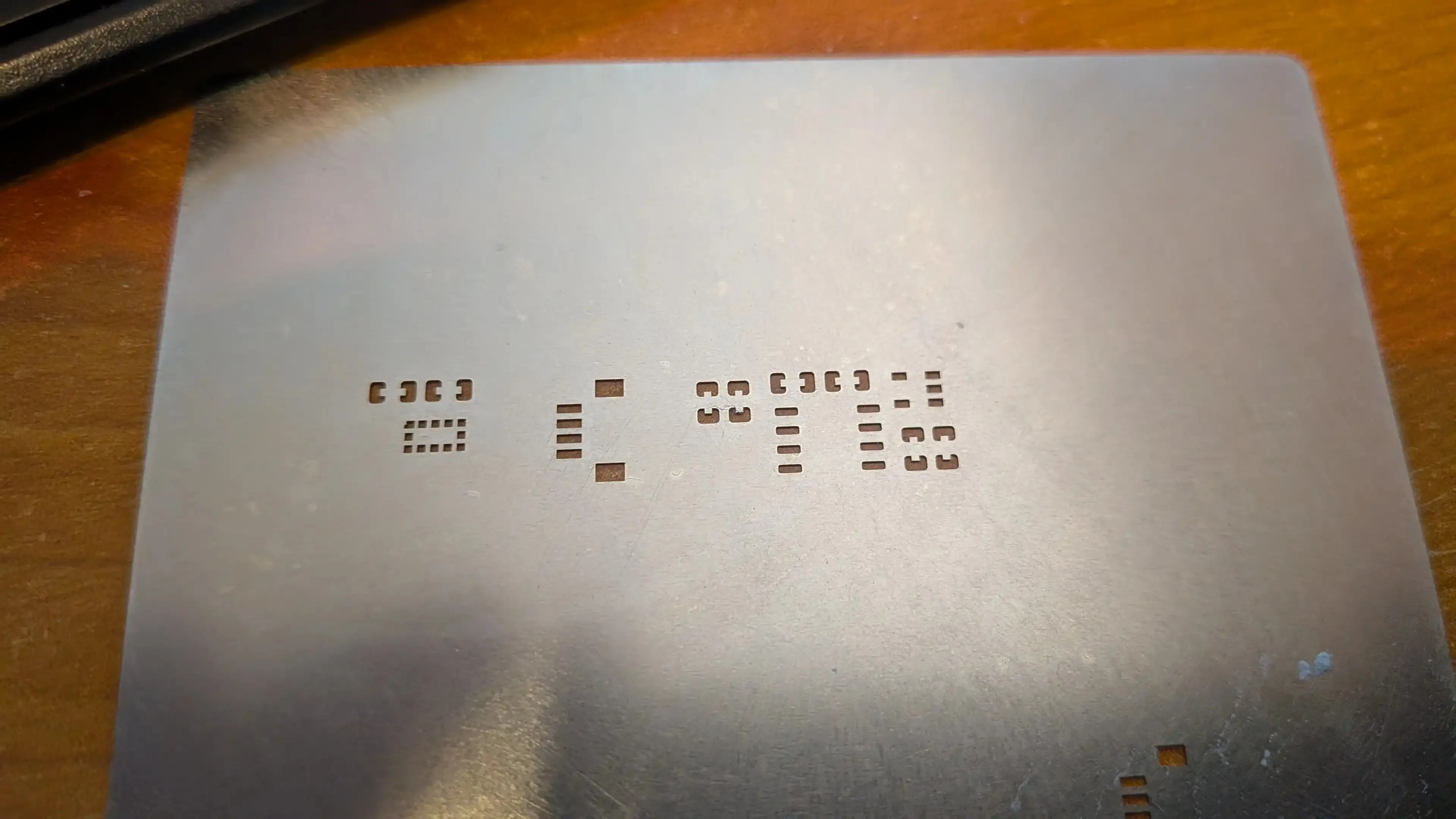

Step Stencil
Varying thickness across the stencil allows precise solder paste deposition for mixed-technology and high-density boards.
Manufacturing Capabilities
Industry-standard specifications for reliable, repeatable stencil quality.
| Stencil Types | Framed & Frameless |
|---|---|
| Stencil Material | 304 stainless steel |
| Laser Precision | ±10µm cutting accuracy |
| Minimum Aperture | ≥ 0.08mm |

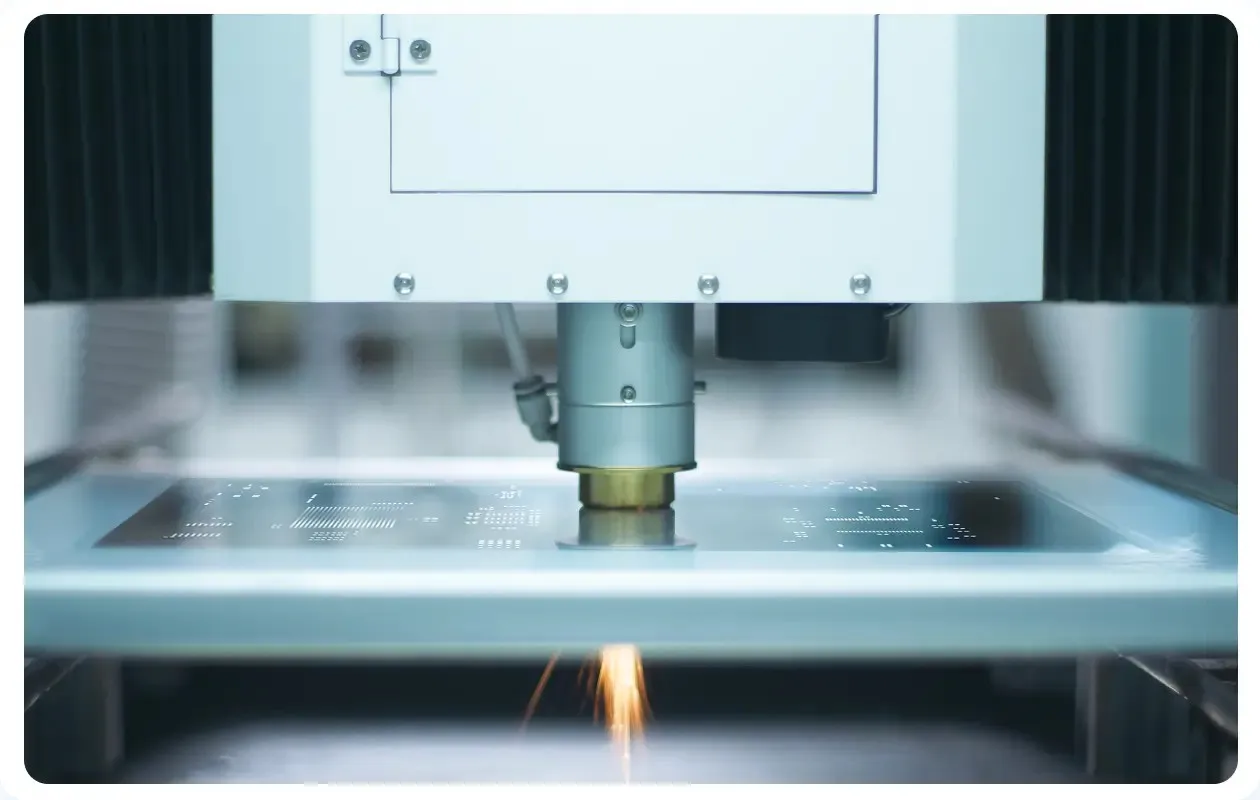

| Cutting Technology | Precision laser cutting |
| File Formats | Gerber (with solder paste layer), DXF |
| Max Frameless Size | ≤ 650 × 580mm |
| Max Framed Size | ≤ 736 × 736mm |
| Thickness Options | 0.10 / 0.12 / 0.15 / 0.20mm |
| MOQ | 1 piece |
| Quote Time | Same-day |
| Production Time | 8–12 hours |
| Shipping | 2–3 days to Southeast Asia (DHL / FedEx) |
How to Order
No fixed price list — quotes are based on your size and quantity. Contact us and get a same-day online quote.
WhatsApp Instant Quote
Send your files or requirements via WhatsApp and get an online quote based on size and quantity — usually within hours.
Email Your Gerber
Send your Gerber (paste layer) or DXF files to our mailbox with your target date. Our engineers check the files for free.
Free Engineer Check
Not sure about thickness or frame type? Tell us your board details — we recommend the right stencil configuration before you order.
Why Choose SMT Stencil Pro
Free Engineering Check
Every Gerber/CAD file is reviewed by our engineers before production — free of charge.
Precision & Quality
±10µm laser precision with electropolished apertures for clean, burr-free printing.
Fast & SEA-Friendly
8–12 hour production and 2–3 day express delivery to Southeast Asia.
MOQ 1 Piece
One stencil or one thousand — every order is welcome.
Our Promise
100% Safe Delivery — every stencil is packed in a cardboard box with sponge protection, guaranteed to arrive safely at your address. Not satisfied with your stencil? We re-manufacture it from your Gerber files — free of charge.
Frequently Asked Questions
What files do you accept?
Gerber files with the solder paste layer, or DXF files. Our engineers check your files for free before production.
What is the minimum order?
MOQ is 1 piece — we make one stencil or one thousand.
How fast is production and delivery?
Production takes 8–12 hours. Express delivery to Southeast Asia takes 2–3 days via DHL or FedEx.
How is my stencil packed?
Each stencil is packed in a cardboard box with sponge protection to guarantee 100% safe delivery to your address.
What if I’m not satisfied with my stencil?
We re-manufacture the stencil from your Gerber files — free of charge, until you are satisfied.
Framed or frameless — which should I choose?
Frameless stencils are flexible and space-saving, ideal for small batches and manual assembly. Framed stencils are easy to handle and suited to automated pick-and-place lines. Not sure? Ask our engineers.
What Our Customers Say
Real feedback from PCB manufacturers and electronics makers.

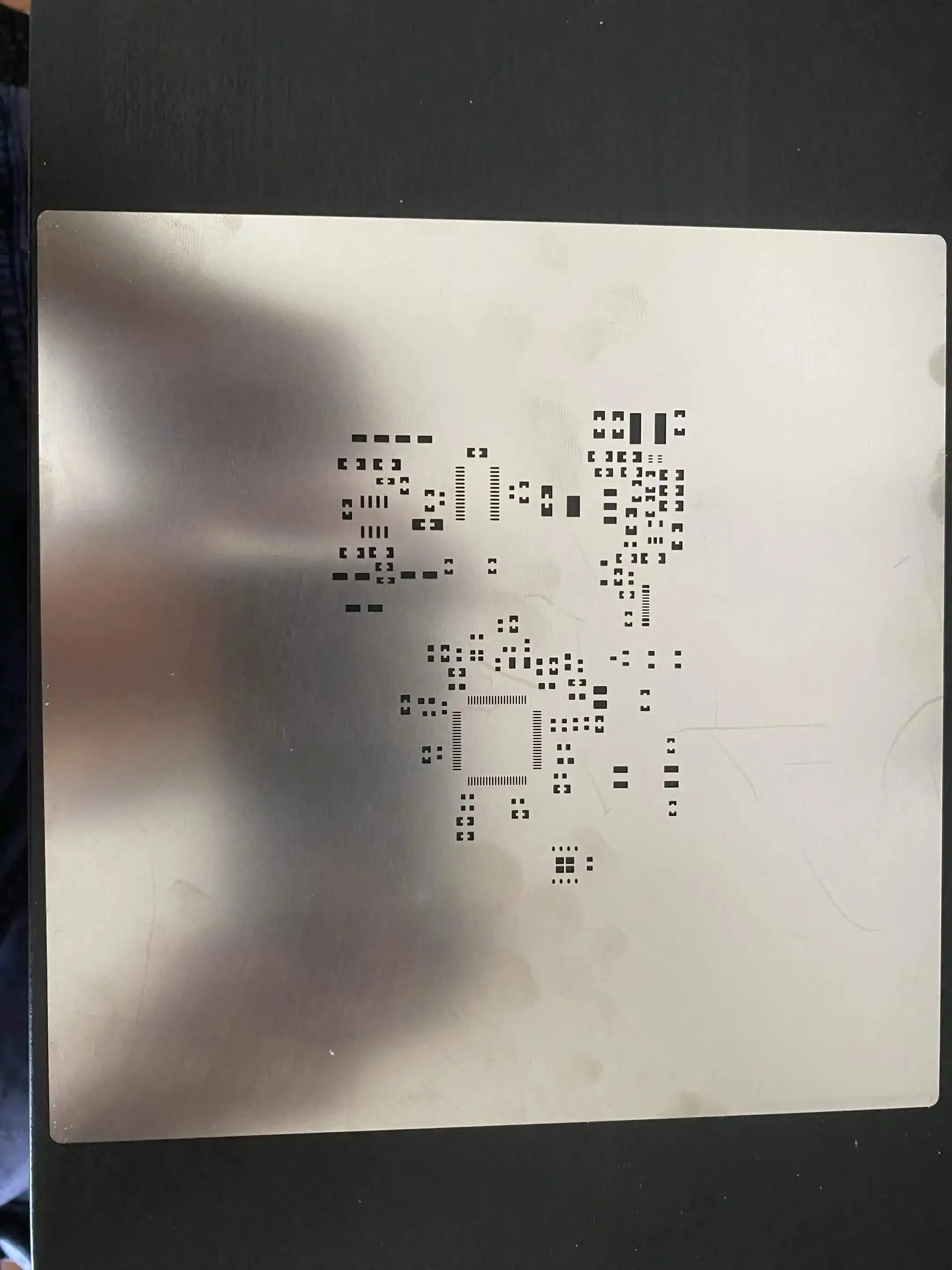

"I have ordered solder paste stencils several times now for both prototyping and small-scale production, and I have never been disappointed. The stencil is made of high-quality material, very durable, and holds its shape perfectly even after multiple uses. The laser cutting is extremely precise with very tight tolerances — alignment was spot on, and the reflow soldering went smoothly with no solder bridging issues. Production was fast and the packaging arrived completely safe. Without a doubt, I highly recommend this factory for stencil manufacturing, whether you are a hobbyist, a hardware startup, or a seasoned professional."
Verified Customer · Aug 2026

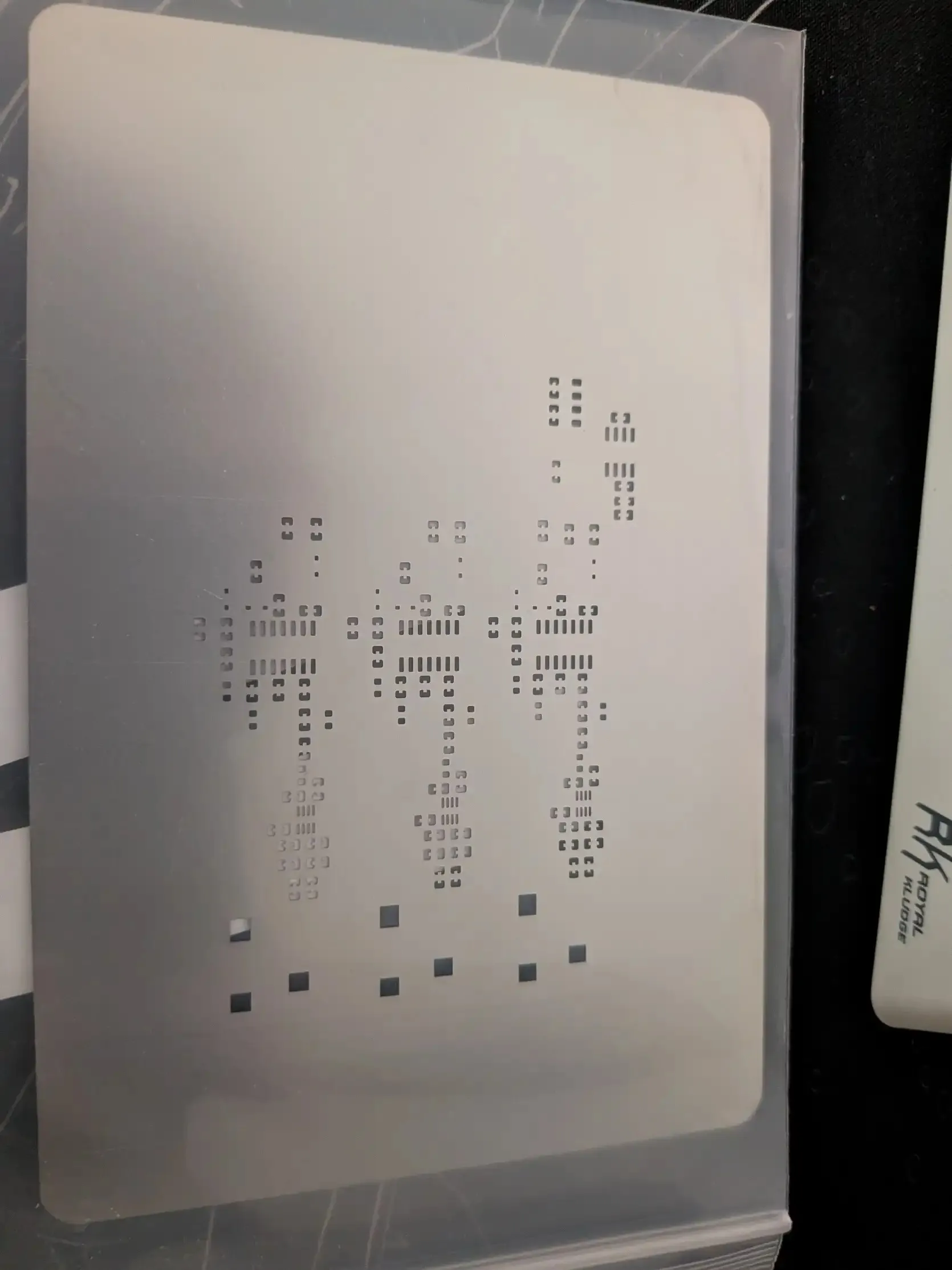

"The stencil worked fine, easy to use and thick enough for the smaller footprints on the board."
Verified Customer · Aug 2026
"The stencil works as designed! I actually put both sides on this stencil since the back side has optional parts!"
Verified Customer · Aug 2026
"No issues with this order. Even though the cuts in stencil i made were 1:1 in respect to pads, the amount of paste was just right. The stencil was delivered well packaged and undamaged. The stencil is very well stretched."
33****9E · Jun 2026
"Stencil fits perfectly and was cut to my exact required size."
42****3A · May 2026
"The stencil was manufactured with excellent precision and worked perfectly during assembly. Apertures were cleanly cut, alignment was accurate, and solder paste release was consistent across both fine-pitch and standard components. This made PCB assembly much faster and reduced the need for touch-up work. Production time was very quick, and the stencil arrived flat and well-protected. I used it for assembling a custom HMI board, and it produced clean, repeatable solder paste deposits on every application. Great quality, excellent pricing, and highly recommended for prototype and small-batch production projects."
Verified Customer · 2026
Verified Customer
Stencil Resources
Guides and articles to help you get the best from your stencils. Replace the placeholder titles and links below.
Ready to start? Get a same-day quote.
Send us your Gerber/CAD files on WhatsApp or by email — free engineer check, MOQ 1 piece, 8–12h production, 2–3 days to Southeast Asia.
